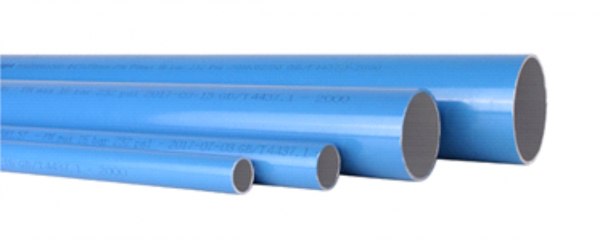

AirTight’s full-featured pipelines are oxidized and the surface of the aluminum will naturally form an oxide film, thus providing corrosion protection and ensuring the quality of the compressed air flowing through the pipeline. Anodizing treatment is an electrochemical reaction process. This reaction is a thickening of the oxide film on the metal surface, thereby improving the hardness, corrosion resistance, oxidation resistance, and wear resistance of the metal surface. The entire performance pipeline is anodized and oxidized to AA10, i.e., the thickness of the anodized film reaches 10μm.

• Airtight full range of aluminum alloy components.
• Internal and external surfaces adopt advanced processing technology, strict production, and quality assurance.
• Exceeding the component thickness of the target, design life of the component over 20 years.

• Airtight Pipeline eliminates corrosion pollution from the source; ensuring that the air quality of the equipment to the point of use does not cause secondary pollution due to the pipeline.
• The pipeline is oxidized to extend the service life of the pipeline and protect the air quality.
• Corrosion will increase the friction coefficient, reduce the internal diameter; pressure drop increases, resulting in higher energy consumption.
• Corrosion will accelerate the leakage of the pipeline; resulting in greater safety risks.


  Diameter (mm)	Length (m)
  20	5.8
  25	5.8
  40	5.8
  50	5.8
  63	5.8
  80	5.8
  100	5.8
  125	5.8
  150	5.8
  200	5
